SERIES CP
Application: Power Factor Correction of Ballasts (chokes) for Fluorescent Lamps, High Pressure Mercury Vapor Lamps, High Intensity Discharge Lamps, Sodium Lamps and Metal Halide Lamps.
Construction: The capacitor elements are formed by winding low loss, self healing, metalized polypropylene film on thermoplastic cores. High speed computerized winding machines are used for this purpose. The film tension is maintained at a constant value throughout the winding process thereby totally excluding the air from the winding.
Container: The cylindrical round cases are made from flame retardant thermoplastic materials meeting flammability UL 94-V2, alternatively Aluminum Containers.
Encapsulation: Resin (non-P.C.B.)
Conforming to: IEC 61048/61049, BS4017, UL810A, ISO 9001 : 2015, CE.
Rated Volts: 220V ~ 540V ( For other voltages, please enquire).
Available Capacitance Range: 1.0µF ~ 100µF
TECHNICAL DATA:
| SERIES | CP |
|---|---|
| STANDARD | IEC 61048/61049, BS4071, UL 810, ISO 9001 : 2015, CE |
| FIXING | Stud M8 |
| CAPACITANCE TOLERANCE | Upto 300V ; ±10% Greater than 300V ; ± 5% |
| CLASS | A (30.000 hrs) For other classes, please enquire |
| RATED VOLTAGE | 220V, 250V, 280V, 300V, 330V, 400V, 440V, 450V, 460V, 480V, 500V, 525V, 540V. For other voltage, please enquire |
| TYPE | A (without interrupter device). |
| RATED FREQUENCY | 50/60 Hz |
| RATED CASE TEMPERATURE | -40ºC/90ºC |
| DISSIPATION FACTOR | Upto 0.0040 |
| DISCHARGE RESISTOR | Fitted to reduce the voltage to a level below 50V within 1 minute of switch off. |
| TEST BETWEEN TERMINALS | Type Test: 2x Rated Volts for 60 sec. Routine Test: 2x Rated Volts for 2 sec. |
| TEST BETWEEN TERMINALS AND CONTAINER | 2.5kV/50 Hz for 1 minute |

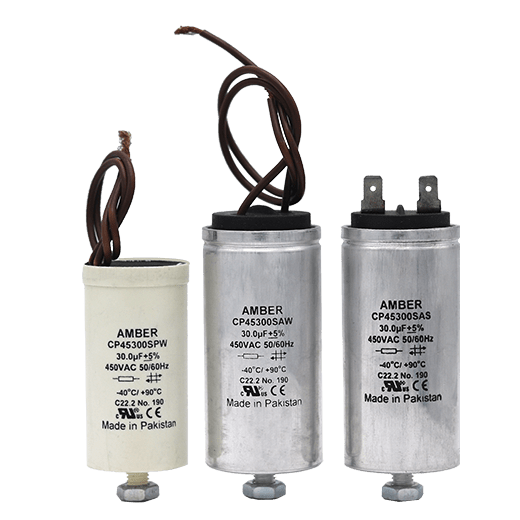

| TERMINATION | CPSAS: Type S single faston 6.3mm (0.25) quick connect with aluminium enclosure. CPSAD: Type D double faston 6.3mm (0.25) quick connect with aluminium enclosure. CPSAT: Type T triple faston 6.3mm (0.25) quick connect with aluminium enclosure. CPSAW: Wire type with aluminium enclosure. CPSAP: Type P. Push in typeterminal with aluminium enclosure. CPSPP: Type P. Push in terminal with thermoplastic enclosure. CPSPW: Wire type with thermoplastic enclosure. |
CATALOG NUMBERS/ORDERING CODE: Catalogue Numbers are generated as under:
| 1st and 2nd positions | Series code – CP for Lighting Capacitors, dry type |
|---|---|
| 3rd and 4th positions | Voltage code – Working Voltage ÷ 10 |
| 5th, 6th and 7th positions | Capacitance code – Capacitance x 10 |
| 8th position | Base Code B – Plain Base S – Stud M8 |
| 9th position | Container Code P – Round thermoplastic case A – Round Aluminium can |
| 10th position | Terminal Code P – Push-in type S – Single FASTON 6.3mm (0.25″ quick-connect) D – Double FASTON 6.3mm (0.25″ quick-connect) T – Solder tag 2.8mm (0.11″) W – Flexible wire 100mm (4″) |
Example: Discharge Lamp Capacitor 35 uF, 400 VAC, in round thermoplastic case, with studded base, with double FASTON 6.3mm (0.25″ quick-connect) terminals.
Catalog No. CP 40 350 SPD
CP Aluminium Ranges
| Capacitance µF | 250 Volts | 400 Volts | 430 Volts | 460 Volts | ||||
|---|---|---|---|---|---|---|---|---|
| D | L | D | L | D | L | D | L | |
| 4.5 | 30 | 54 | — | — | — | — | — | — |
| 5.0 | 30 | 54 | — | — | — | — | — | — |
| 6.3 | 30 | 74 | — | — | — | — | — | — |
| 6.8 | 30 | 74 | 30 | 74 | — | — | — | — |
| 7.2 | 30 | 74 | — | — | — | — | — | — |
| 8.0 | 30 | 74 | — | — | — | — | — | — |
| 9.0 | 30 | 74 | — | — | — | — | — | — |
| 10.0 | 30 | 74 | 40 | 74 | — | — | — | — |
| 11.0 | — | — | — | — | 40 | 82 | — | — |
| 12.0 | 30 | 74 | — | — | — | — | — | — |
| 12.5 | 35 | 74 | — | — | — | — | — | — |
| 13.0 | 35 | 74 | — | — | — | — | — | — |
| 15.0 | 35 | 74 | 40 | 74 | — | — | — | — |
| 16.0 | 35 | 74 | — | — | — | — | — | — |
| 18.0 | 35 | 82 | — | — | 45 | 102 | — | — |
| 20.0 | 40 | 74 | — | — | 45 | 102 | — | — |
| 24.0 | — | — | — | — | — | — | 50 | 102 |
| 25.0 | 40 | 82 | 45 | 102 | 50 | 102 | — | — |
| 30.0 | 40 | 102 | 45 | 102 | 50 | 102 | — | — |
| 32.0 | 40 | 102 | — | — | — | — | — | — |
| 35.0 | 40 | 102 | 50 | 102 | 50 | 125 | — | — |
| 36.0 | 45 | 102 | — | — | — | — | — | — |
| 40.0 | 45 | 102 | 50 | 102 | — | — | — | — |
| 45.0 | 45 | 102 | — | — | — | — | — | — |
| 50.0 | 50 | 102 | 60 | 102 | — | — | — | — |
| 55.0 | — | — | 50 | 125 | — | — | — | — |
| 60.0 | 50 | 102 | — | — | — | — | — | — |
| 65.0 | 50 | 125 | — | — | — | — | — | — |
| 69.0 | — | — | 60 | 125 | — | — | — | — |
| 100.0 | 60 | 136 | — | — | — | — | — | — |
CP Plastic Ranges
| Capacitance µF | 250 Volts | 300 Volts | 400 Volts | 440 Volts | 450 Volts | 480 Volts | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | L | D | L | D | L | D | L | D | L | D | L | |
| 1.5 | — | — | — | — | — | — | 30 | 48 | — | — | — | — |
| 2.0 | 30 | 78 | — | — | — | — | 30 | 48 | — | — | — | — |
| 2.5 | — | — | — | — | 30 | 48 | — | — | — | — | — | — |
| 3.0 | — | — | — | — | — | — | 30 | 48 | — | — | — | — |
| 3.7 | — | — | — | — | 30 | 68 | — | — | — | — | — | — |
| 4.0 | 30 | 48 | — | — | — | — | — | — | — | — | — | — |
| 4.5 | 30 | 48 | — | — | — | — | — | — | — | — | — | — |
| 5.0 | 30 | 48 | — | — | — | — | — | — | — | — | — | — |
| 6.0 | 30 | 68 | — | — | — | — | — | — | — | — | — | — |
| 7.0 | — | — | 30 | 68 | — | — | — | — | — | — | — | — |
| 8.0 | 30 | 68 | — | — | — | — | — | — | — | — | — | — |
| 9.0 | — | — | 30 | 68 | — | — | — | — | — | — | — | — |
| 10.0 | 30 | 68 | — | — | — | — | — | — | — | — | — | — |
| 12.5 | 35 | 68 | — | — | — | — | — | — | — | — | — | — |
| 14.0 | — | — | — | — | 35 | 68 | — | — | — | — | — | — |
| 15.0 | 35 | 68 | 35 | 68 | — | — | — | — | — | — | 45 | 92 |
| 16.0 | 35 | 68 | — | — | — | — | — | — | — | — | — | — |
| 18.0 | 40 | 68 | — | — | — | — | — | — | — | — | — | — |
| 20.0 | 40 | 68 | 40 | 68 | — | — | — | — | — | — | 45 | 92 |
| 24.0 | — | — | — | — | — | — | — | — | 45 | 92 | — | — |
| 25.0 | 40 | 92 | 40 | 92 | 45 | 92 | — | — | — | — | — | — |
| 30.0 | 40 | 92 | 40 | 92 | — | — | — | — | — | — | 55 | 92 |
| 35.0 | 40 | 92 | 40 | 92 | — | — | — | — | — | — | — | — |
| 45.0 | 45 | 92 | — | — | — | — | — | — | — | — | — | — |
| 55.0 | 55 | 92 | — | — | — | — | — | — | — | — | — | — |
ALL TERMINATION DIMENSIONS:
 |  |  |
 |  |
 |  |
